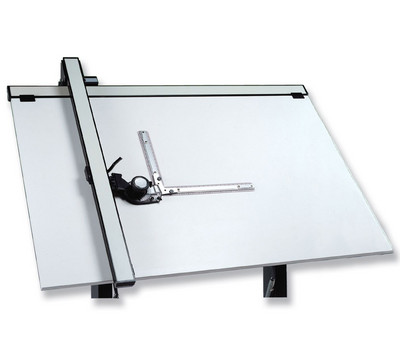

The Alvin Track Drafting Machine is smooth and effortless tracking that is accomplished by 14 uniquely designed flat face bearing rollers strategically placed for precise vertical and horizontal movement at any board angle. It features a comfortably designed palm rest and thumb release that allows easy rotation of the protractor head with convenient 15 degrees auto index settings and intermediate lockable fine line adjustment. The 360 degrees protractor head with built in magnifier is divided into single degrees with 5 minute double vernier permitting angular accuracy to 1/12th of a degree. A double action hinge system allows the head and scales to be tilted vertically from the board surface for a clear working view and also allows the head to sit flat on the board compensating for any board irregularities. A floating head mechanism positions the protractor above the surface to protect against accidental smearing or tearing of drawing media. An exclusive feature is the positive double shoe braking system with dual lever fingertip operation precisely controlling and locking both horizontal and vertical movement. The Track Drafting Machine always ensures complete straight lines and the additional features include a one touch lever to install or dismount the vertical track, and an adjustable vertical track support roller to accommodate both varying board depths and thicknesses. This machine comes with a full protective plastic dust cover large enough for both machine and drawing surface. The Track Drafting Machine is offered in 31 x 42, 36 x 48, 37.5 x 60, and 37.5 x 72 inch sizes.
|
|
|
|
|
|
|
|
|
|
|
|
-
Package Weight: 31 x 42 inch: 17.00 lbs
36 x 48 inch: 20.00 lbs
37.5 x 60 inch: 24.00 lbs
37.5 x 72 inch: 27.00 lbs
-
Types: Drafting machine
-
Size: 31 x 42 in, 36 x 48 in, 37.5 x 60 in, 37.5 x 72 in
-
Color: White
-
Fits: Drafting tables
Product Overview & Specs

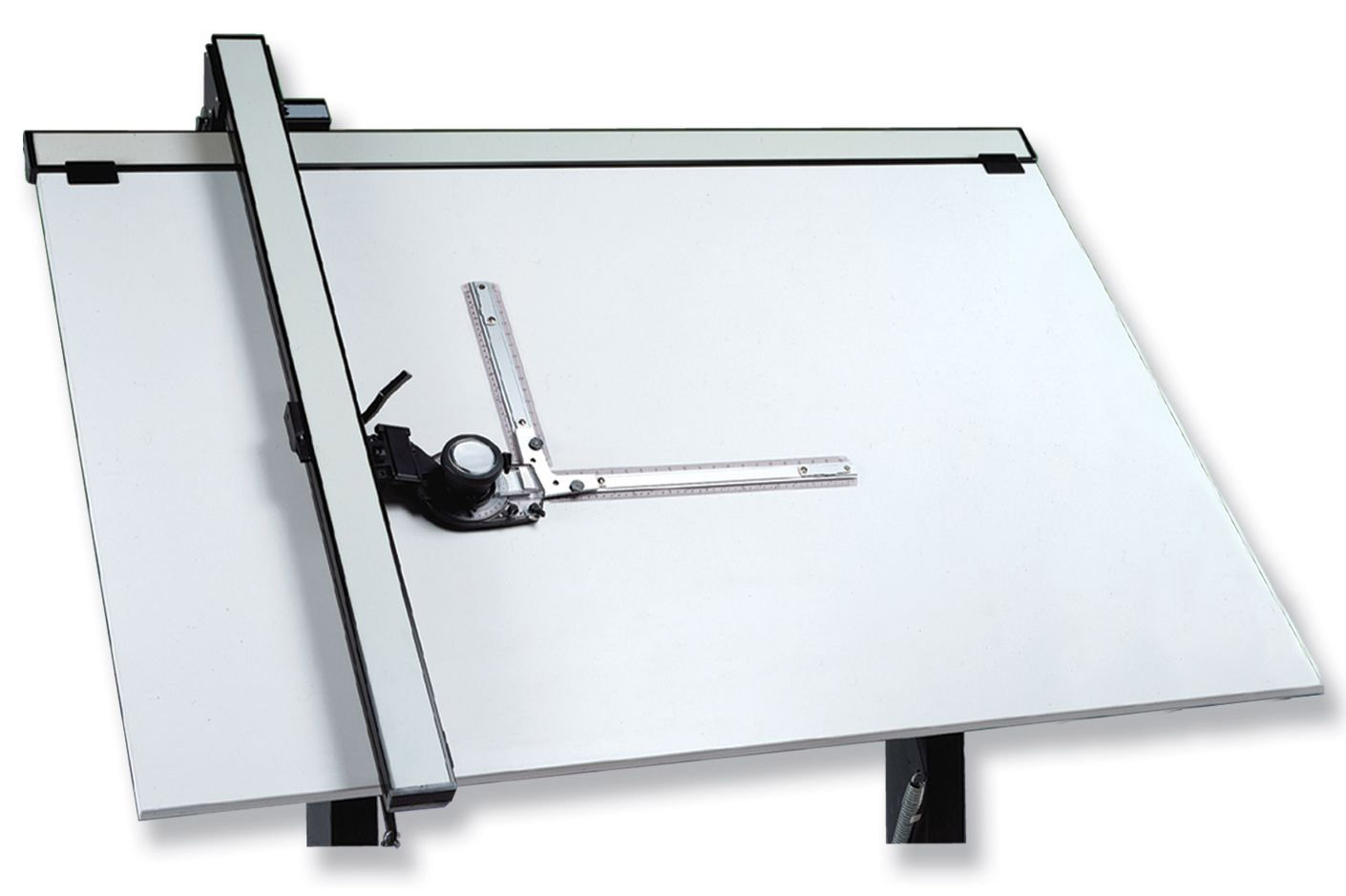

The Alvin Track Drafting Machine is smooth and effortless tracking that is accomplished by 14 uniquely designed flat face bearing rollers strategically placed for precise vertical and horizontal movement at any board angle. It features a comfortably designed palm rest and thumb release that allows easy rotation of the protractor head with convenient 15 degrees auto index settings and intermediate lockable fine line adjustment. The 360 degrees protractor head with built in magnifier is divided into single degrees with 5 minute double vernier permitting angular accuracy to 1/12th of a degree. A double action hinge system allows the head and scales to be tilted vertically from the board surface for a clear working view and also allows the head to sit flat on the board compensating for any board irregularities. A floating head mechanism positions the protractor above the surface to protect against accidental smearing or tearing of drawing media. An exclusive feature is the positive double shoe braking system with dual lever fingertip operation precisely controlling and locking both horizontal and vertical movement. The Track Drafting Machine always ensures complete straight lines and the additional features include a one touch lever to install or dismount the vertical track, and an adjustable vertical track support roller to accommodate both varying board depths and thicknesses. This machine comes with a full protective plastic dust cover large enough for both machine and drawing surface. The Track Drafting Machine is offered in 31 x 42, 36 x 48, 37.5 x 60, and 37.5 x 72 inch sizes.
- Smooth and effortless tracking
- Ensures complete straight lines
- 14 Uniquely designed flat face bearing rollers
- Comfortably designed palm rest and thumb release
- 360 Deg. Protractor head with built in magnifier
- 15 Deg. Auto index settings and intermediate lockable fine line adjustment
- 5 Min. Double vernier permits angular accuracy to 1/12th of a degree
- Double action hinge system and floating head mechanism
- Positive double shoe braking system with dual lever fingertip operation
- Comes with a full protective plastic dust cover large enough for both machine and drawing surface
- Include one touch lever and adjustable vertical track support roller
- Offered in 31" x 42", 36" x 48", 37.5" x 60", and 37.5" x 72" sizes
|
|
|
